Integrating Jenkins and Selenium for functional testing

In recipe, we write a sample functional test Selenium.

Getting ready

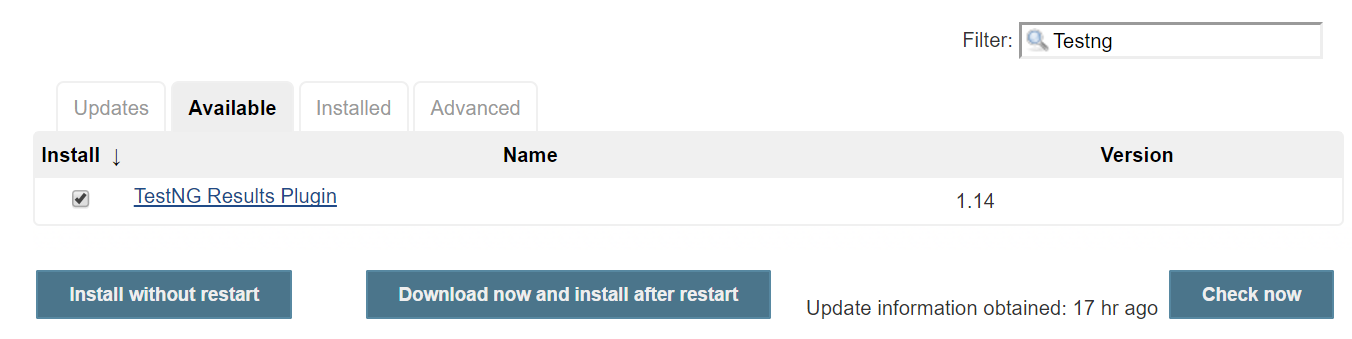

Install the TestNG Results Plugin:

Create a new project or build job in Jenkins.

How to do it...

Now let's try to execute the from Jenkins:

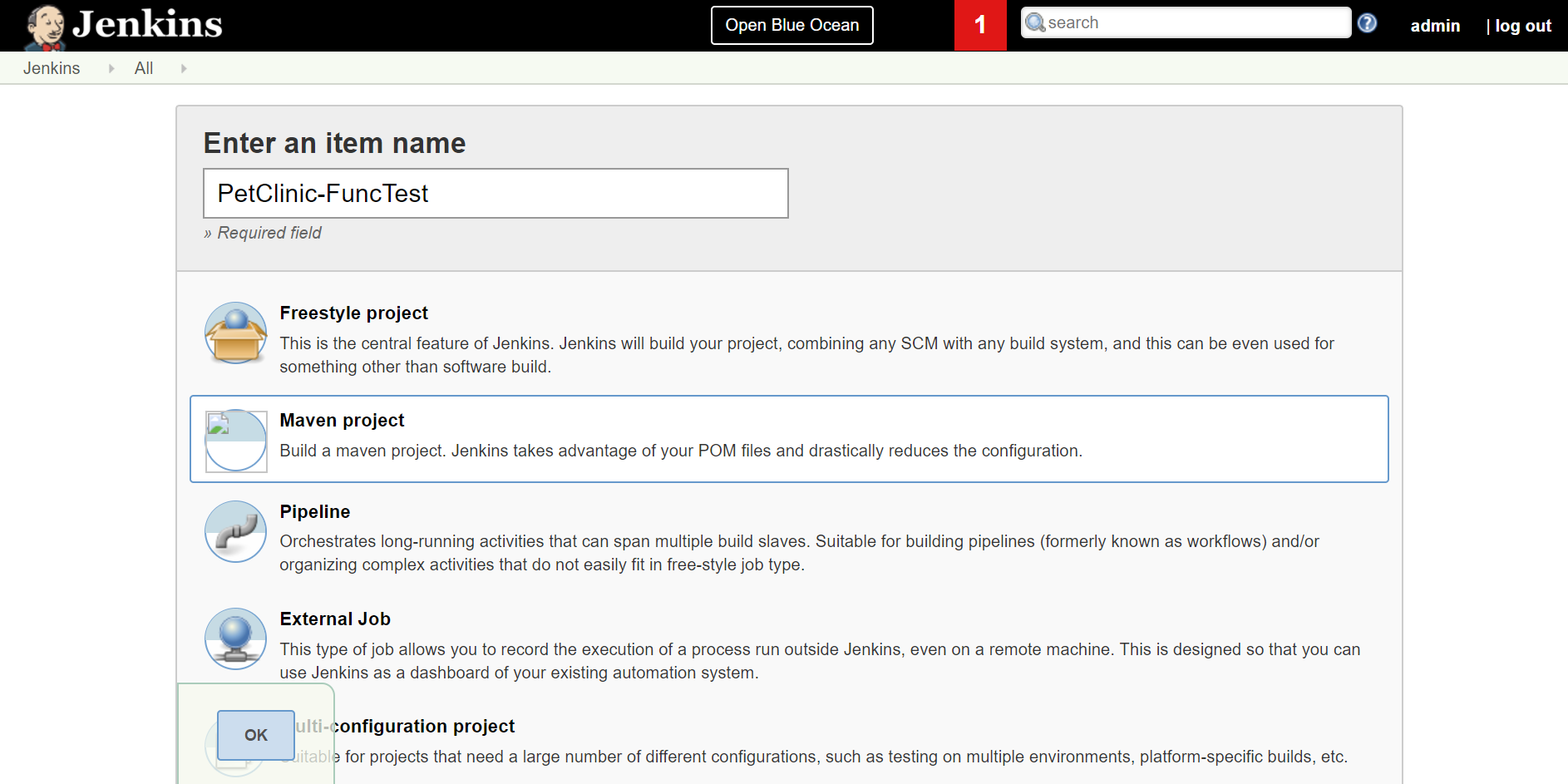

1. Check in the Test Project in Repository. Create a PetClinic-FuncTest freestyle job in Jenkins.

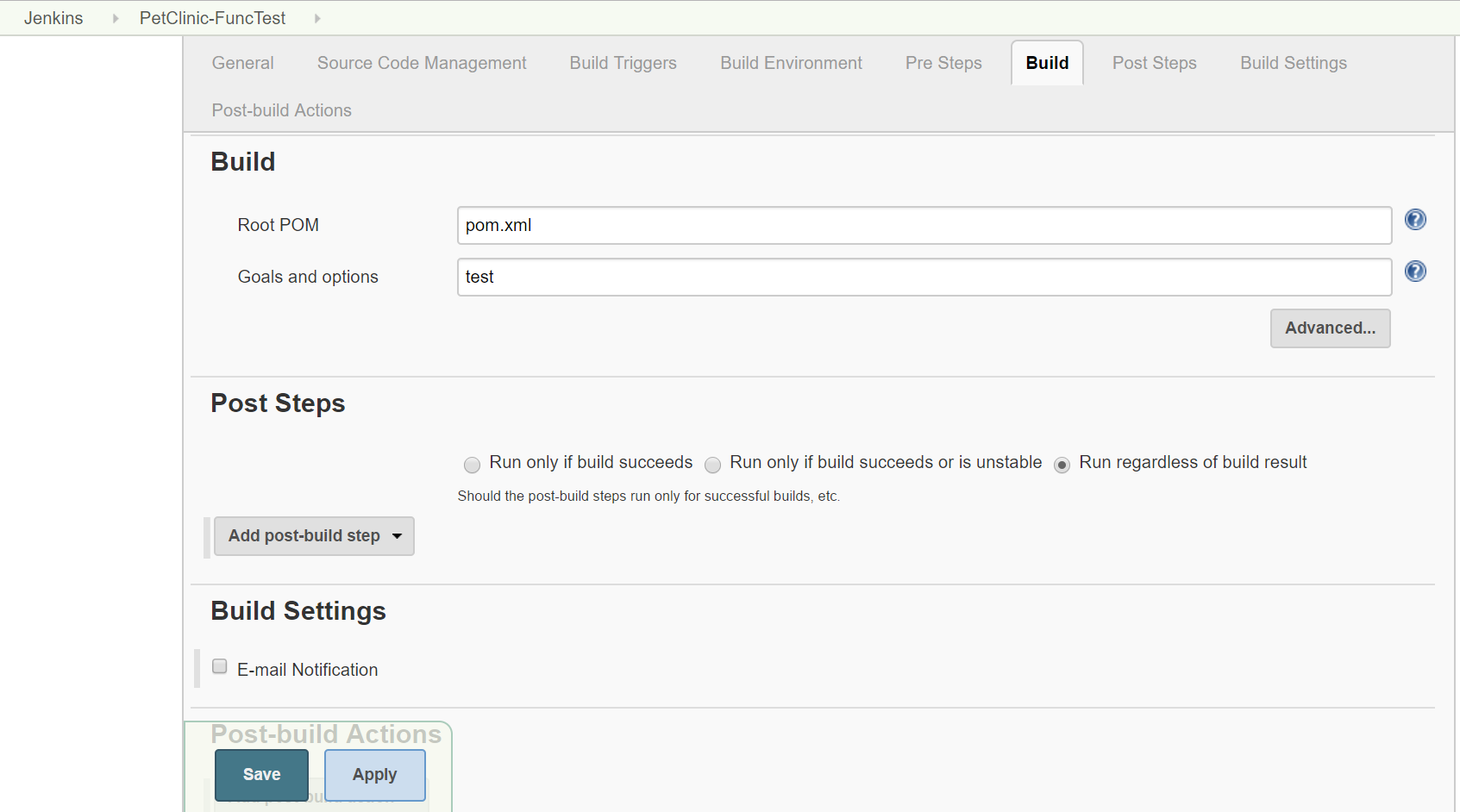

2. In the Build section, provide the Root POM location and Goals and options to execute:

3. Save the build job and click on Build now.

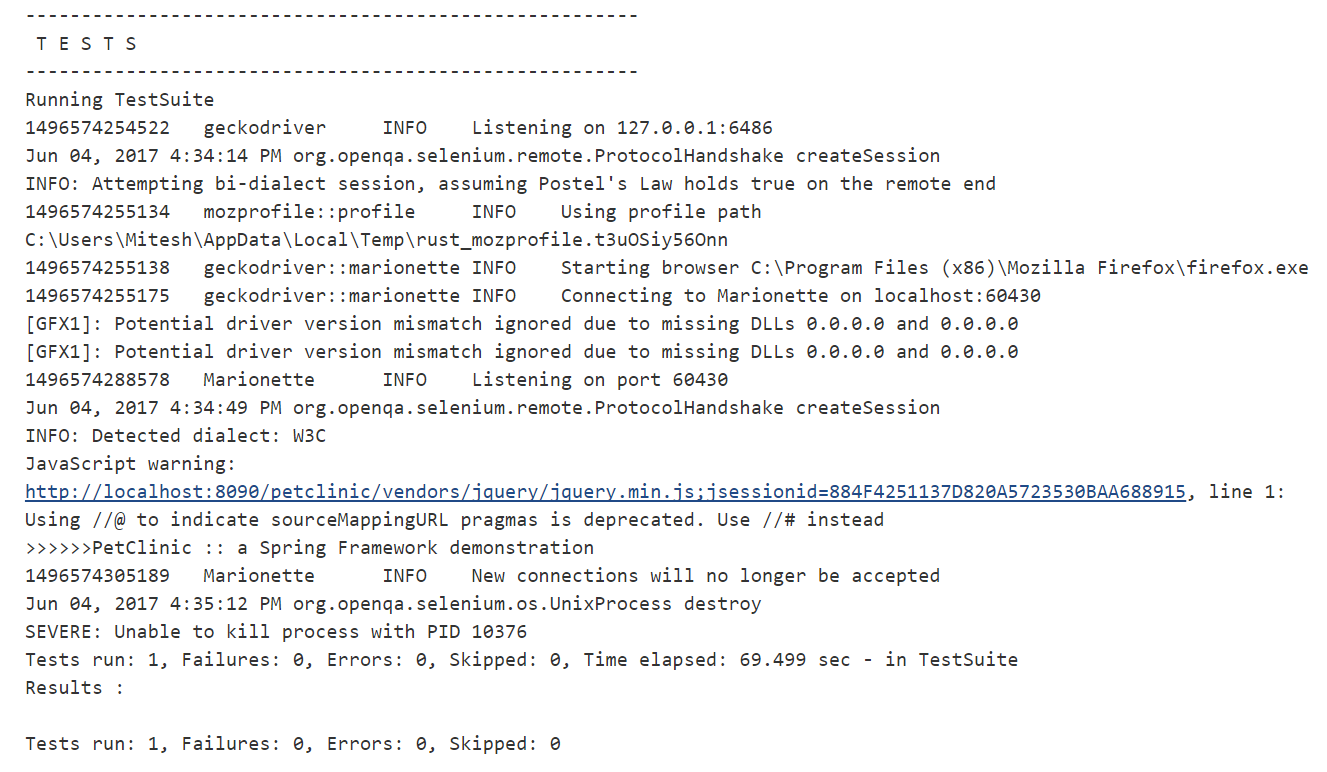

4. Verify the execution of the build job in the Console Output.

5. It will open a Mozilla Firefox window and open a URL that is given in the code. This requires our PetClinic application to be deployed in a web server and running without any issues:

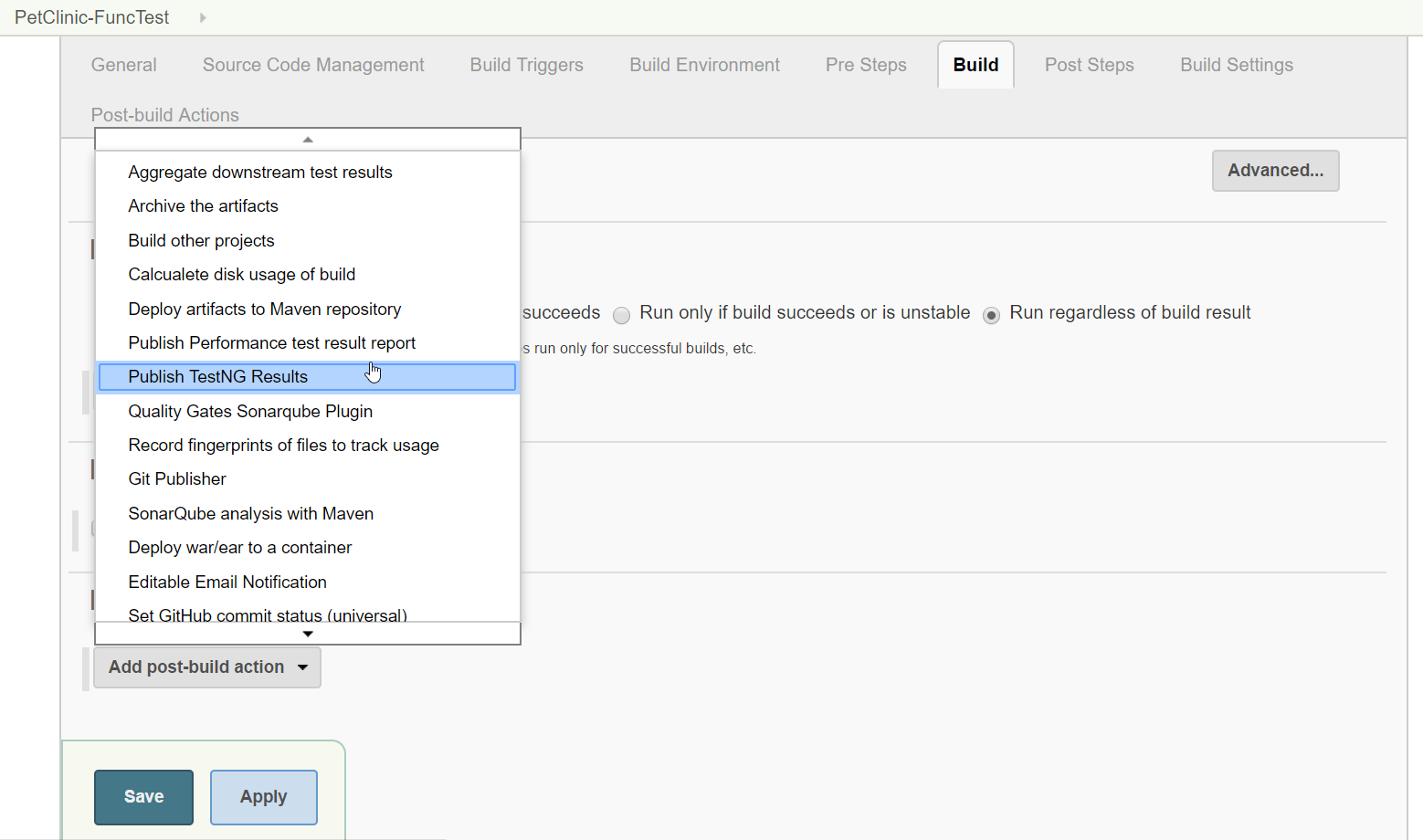

6. Go to Post-build Actions and select Publish TestNG Results:

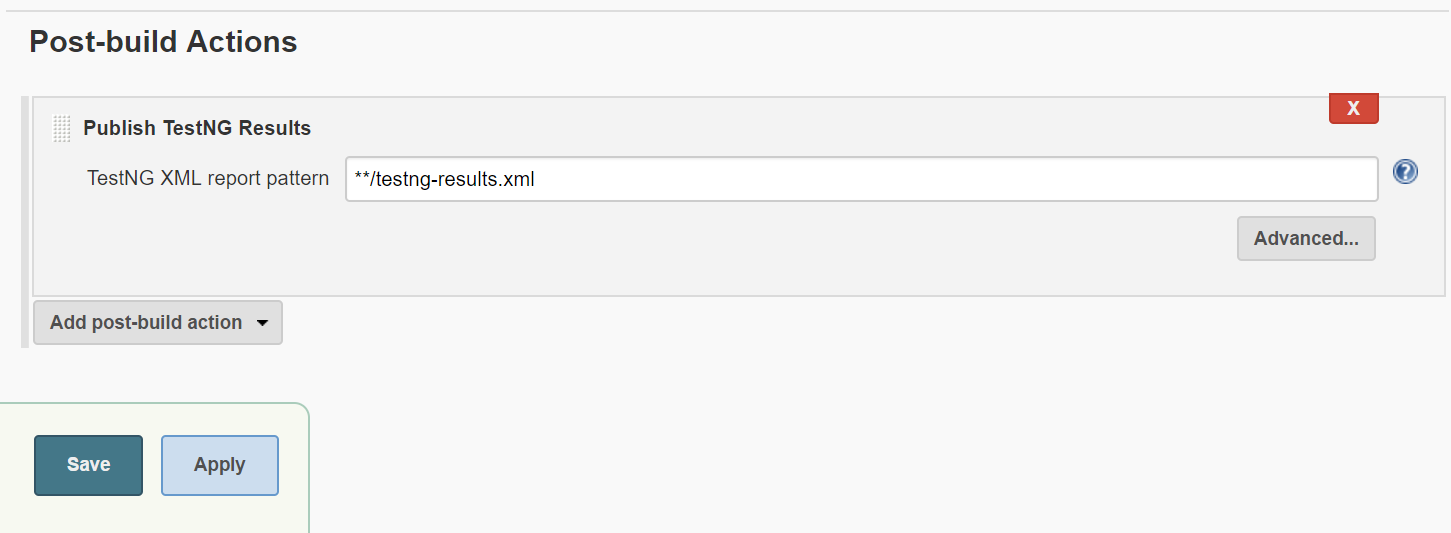

7. Provide the TestNG XML report pattern:

8. Click on Build now:

We have now seen how to execute Selenium-based test cases in Jenkins.

There's more

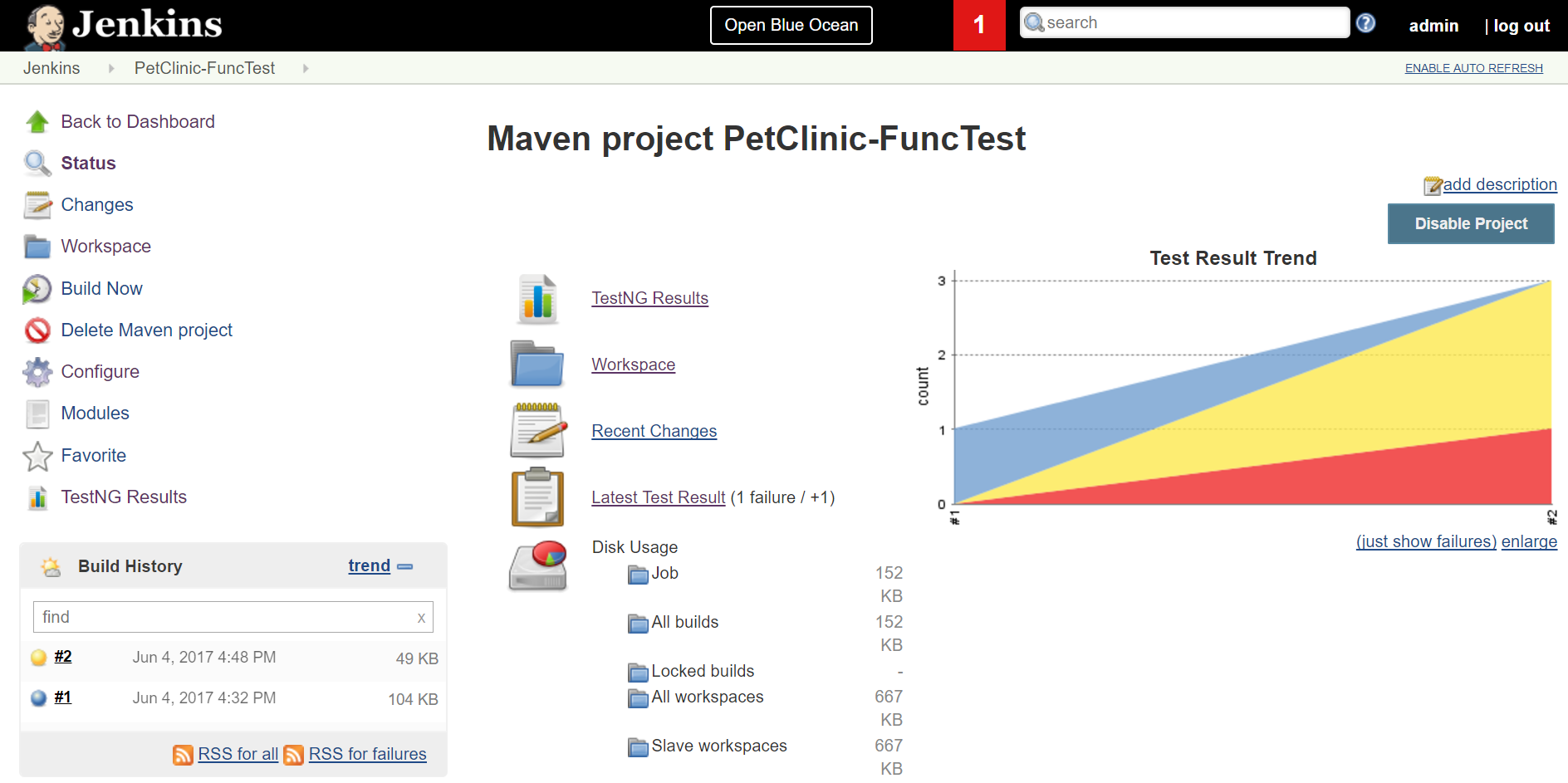

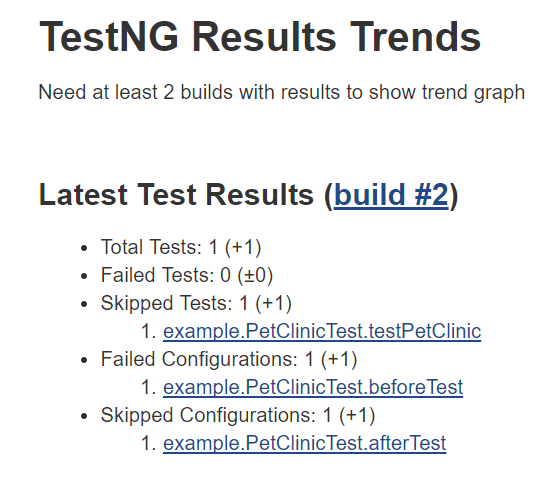

Go to the project dashboard and verify the graphs for TestNG results:

In the section...
