Configuring interfaces
Configuring the interfaces of the ASA is very simple. Perform the following steps to get started:

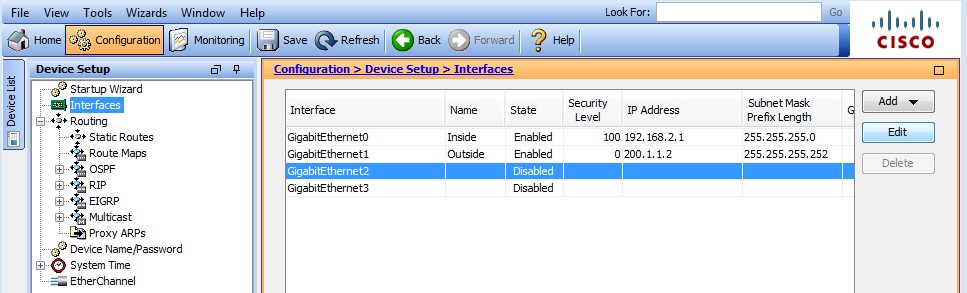

- Navigate to
Configuration|Device Setup|Interfaces. Simply click on the interface you would like to configure/modify and click onEdit:

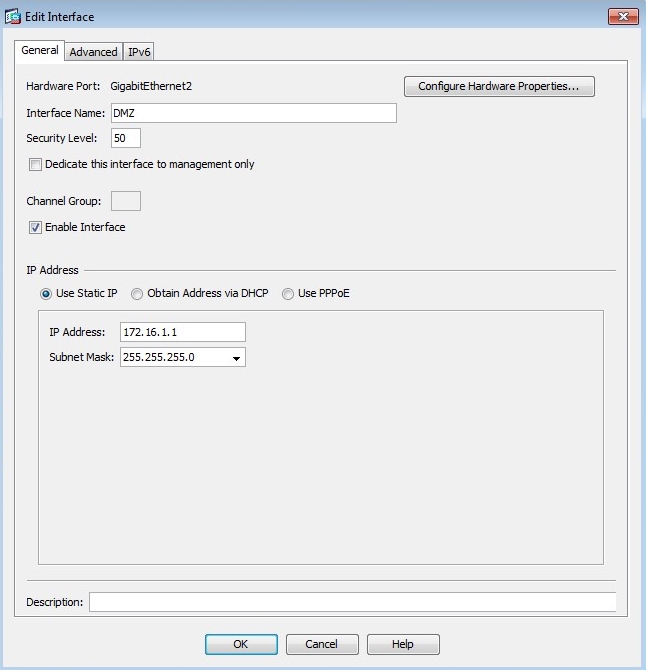

- The following window will appear, providing the settings for the interface itself. Here you can create a name for the interface, adjust the security-level, enable the interface, and assign an
IP AddressandSubnet Mask:

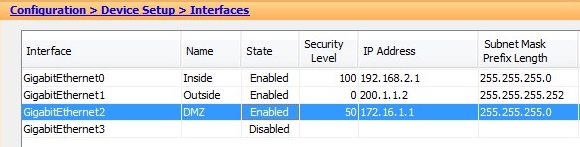

- Upon clicking
OK, the ASDM will carry you back to the mainInterfacewindow. The following screenshot clearly depicts all the interfaces of the ASA, their security-levels, the IP address and subnet mask, their names, and most importantly, whether the interface isEnabledorDisabled:
