Creating a data model for web access logs

In this first recipe, you will create a data model for our web access logs. You will be using Splunk's Data Model Editor to define several data model dataset types and add dataset constraints and fields.

Getting ready

To step through this recipe, you will need a running Splunk Enterprise server, with the sample data loaded from Chapter 1, Play Time - Getting Data In. You should also have completed the recipes from the earlier chapters. You should be familiar with navigating the Splunk user interface.

How to do it...

Follow the steps in this recipe to create the Web Access data model:

1. Log in to your Splunk server.
2. Select the Operational Intelligence application.

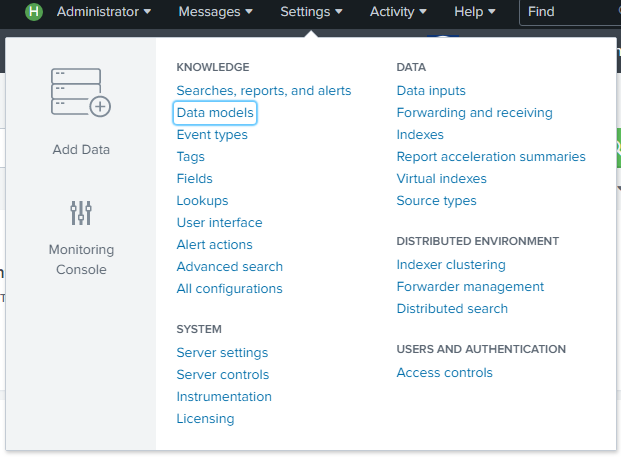

3. Select the Settings menu item at the top-right corner of the screen, and then select Data models:

4. An empty list of data models to manage will load. Click on the New Data Model button located at the top-right corner of the screen:


5. A pop-up box will be displayed. Enter Web Access in the Title field...
