Mastering Machine Learning for Penetration Testing: Develop an extensive skill set to break self-learning systems using Python

In order to teach machines how to solve a large number of problems by themselves, we need to consider the different machine learning models. As you know, we need to feed the model with data; that is why machine learning models are divided, based on datasets entered (input), into four major categories: supervised learning, semi-supervised learning, unsupervised learning, and reinforcement. In this section, we are going to describe each model in a detailed way, in addition to exploring the most well-known algorithms used in every machine learning model. Before building machine learning systems, we need to know how things work underneath the surface.

Supervised

We talk about supervised machine learning when we have both the input variables and the output variables. In this case, we need to map the function (or pattern) between the two parties. The following are some of the most often used supervised machine learning algorithms.

Bayesian classifiers

According to the Cambridge English Dictionary, bias is the action of supporting or opposing a particular person or thing in an unfair way, allowing personal opinions to influence your judgment. Bayesian machine learning refers to having a prior belief, and updating it later by using data. Mathematically, it is based on the Bayes formula:

One of the simplest Bayesian problems is randomly tossing a coin and trying to predict whether the output will be heads or tails. That is why we can identify Bayesian methodology as being probabilistic. Naive Bayes is very useful when you are using a small amount of data.

Support vector machines

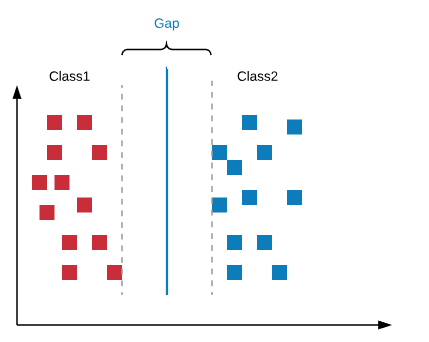

A support vector machine (SVM) is a supervised machine learning model that works by identifying a hyperplane between represented data. The data can be represented in a multidimensional space. Thus, SVMs are widely used in classification models. In an SVM, the hyperplane that best separates the different classes will be used. In some cases, when we have different hyperplanes that separate different classes, identification of the correct one will be performed thanks to something called a margin, or a gap. The margin is the nearest distance between the hyperplanes and the data positions. You can take a look at the following representation to check for the margin:

The hyperplane with the highest gap will be selected. If we choose the hyperplane with the shortest margin, we might face misclassification problems later. Don't be distracted by the previous graph; the hyperplane will not always be linear. Consider a case like the following:

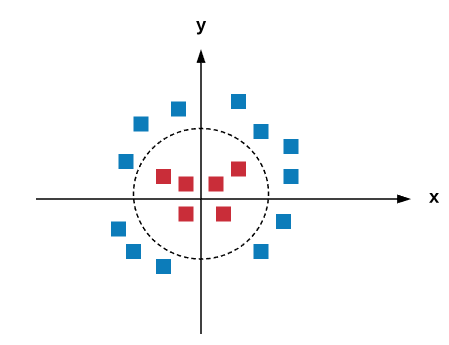

In the preceding situation, we can add a new axis, called the z axis, and apply a transformation using a kernel trick called a kernel function, where z=x^2+y^2. If you apply the transformation, the new graph will be as follows:

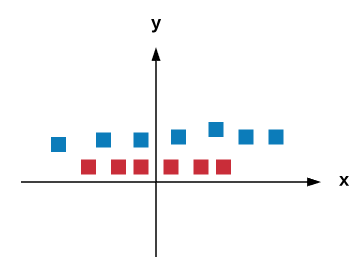

Now, we can identify the right hyperplane. The transformation is called a kernel. In the real world, finding a hyperplane is very hard. Thus, two important parameters, called regularization and gamma, play a huge role in the determination of the right hyperplane, and in every SVM classifier to obtain better accuracy in nonlinear hyperplane situations.

Decision trees

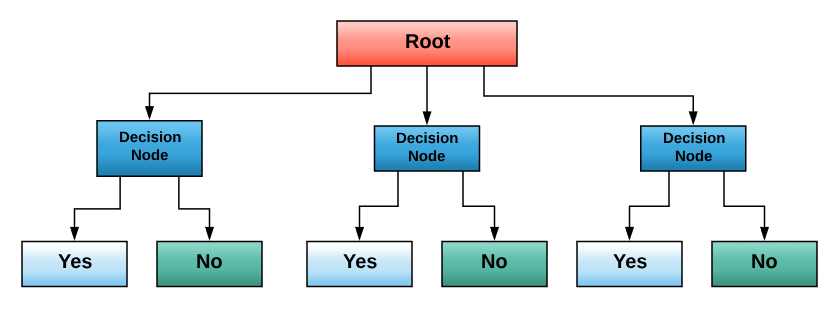

Decision trees are supervised learning algorithms used in decision making by representing data as trees upside-down with their roots at the top. The following is a graphical representation of a decision tree:

Data is represented thanks to the Iterative Dichotomiser 3 algorithm. Decision trees used in classification and regression problems are called CARTs. They were introduced by Leo Breiman.

Unsupervised

In unsupervised learning, we don't have clear information about the output of the models. The following are some well-known unsupervised machine learning algorithms.

Artificial neural networks

Artificial networks are some of the hottest applications in artificial intelligence, especially machine learning. The main aim of artificial neural networks is building models that can learn like a human mind; in other words, we try to mimic the human mind. That is why, in order to learn how to build neural network systems, we need to have a clear understanding of how a human mind actually works. The human mind is an amazing entity. The mind is composed and wired by neurons. Neurons are responsible for transferring and processing information.

We all know that the human mind can perform a lot of tasks, like hearing, seeing, tasting, and many other complicated tasks. So logically, one might think that the mind is composed of many different areas, with each area responsible for a specific task, thanks to a specific algorithm. But this is totally wrong. According to research, all of the different parts of the human mind function thanks to one algorithm, not different algorithms. This hypothesis is called the one algorithm hypothesis.

Now we know that the mind works by using one algorithm. But what is this algorithm? How is it used? How is information processed with it?

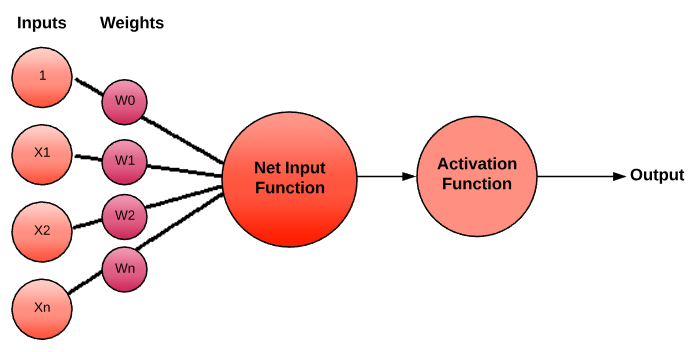

To answer the preceding questions, we need to look at the logical representation of a neuron. The artificial representation of a human neuron is called a perceptron. A perceptron is represented by the following graph:

There are many Activation Functions used. You can view them as logical gates:

• Step function: A predefined threshold value.
• Sigmoid function:



• Tanh function:

• ReLu function:

Many fully connected perceptrons comprise what we call a Multi-Layer Perceptron (MLP) network. A typical neural network contains the following:

• An input layer
• Hidden layers
• Output layers

We will discuss the term deep learning once we have more than three hidden layers. There are many types of deep learning networks used in the world:

• Convolutional neural networks (CNNs)
• Recursive neural networks (RNNs)
• Long short-term memory (LSTM)
• Shallow neural networks
• Autoencoders (AEs)
• Restricted Boltzmann machines

Don't worry; we will discuss the preceding algorithms in detail in future chapters.

To build deep learning models, we follow five steps, suggested by Dr. Jason Brownlee. The five steps are as follows:

1. Network definition
2. Network compiling
3. Network fitting
4. Network evaluation
5. Prediction

Linear regression

Linear regression is a statistical and machine learning technique. It is widely used to understand the relationship between inputs and outputs. We use linear regression when we have numerical values.

Logistic regression

Logistic regression is also a statistical and machine learning technique, used as a binary classifier - in other words, when the outputs are classes (yes/no, true/false, 0/1, and so on).

Clustering with k-means

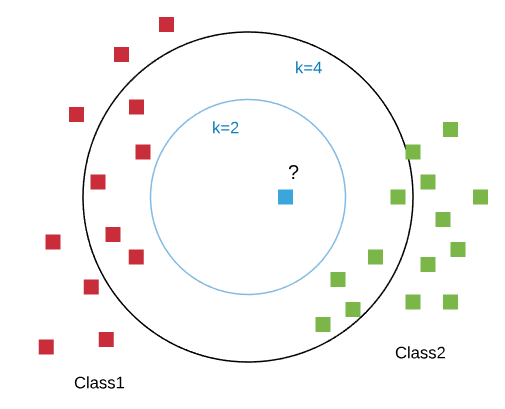

k-Nearest Neighbors (kNN) is a well-known clustering method. It is based on finding similarities in data points, or what we call the feature similarity. Thus, this algorithm is simple, and is widely used to solve many classification problems, like recommendation systems, anomaly detection, credit ratings, and so on . However, it requires a high amount of memory. While it is a supervised learning model, it should be fed by labeled data, and the outputs are known. We only need to map the function that relates the two parties. A kNN algorithm is non-parametric. Data is represented as feature vectors. You can see it as a mathematical representation:

The classification is done like a vote; to know the class of the data selected, you must first compute the distance between the selected item and the other, training item. But how can we calculate these distances?

Generally, we have two major methods for calculating. We can use the Euclidean distance:

Or, we can use the cosine similarity:

The second step is choosing k the nearest distances (k can be picked arbitrarily). Finally, we conduct a vote, based on a confidence level. In other words, the data will be assigned to the class with the largest probability.

Reinforcement

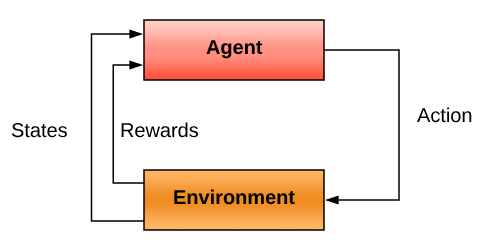

In the reinforcement machine learning model, the agent is in interaction with its environment, so it learns from experience, by collecting data during the process; the goal is optimizing what we call a long term reward. You can view it as a game with a scoring system. The following graph illustrates a reinforcement model:

Evaluation is a key step in every methodological operation. After building a product or a system, especially a machine learning model, we need to have a clear vision about its performance, to make sure that it will act as intended later on. In order to evaluate a machine learning performance, we need to use well-defined parameters and insights. To compute the different evaluation metrics, we need to use four important parameters:

The notations for the preceding parameters are as follows:

There are many machine learning evaluation metrics, such as the following:

Dimensionality reduction is used to reduce the dimensionality of a dataset. It is really helpful in cases where the problem becomes intractable, when the number of variables increases. By using the term dimensionality, we are referring to the features. One of the basic reduction techniques is feature engineering.

Generally, we have many dimensionality reduction algorithms:

In many cases, when you build a machine learning model, you receive low accuracy and low results. In order to get good results, we can use ensemble learning techniques. This can be done by combining many machine learning techniques into one predictive model.

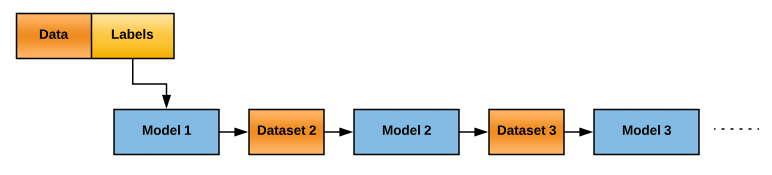

We can categorize ensemble learning techniques into two categories:

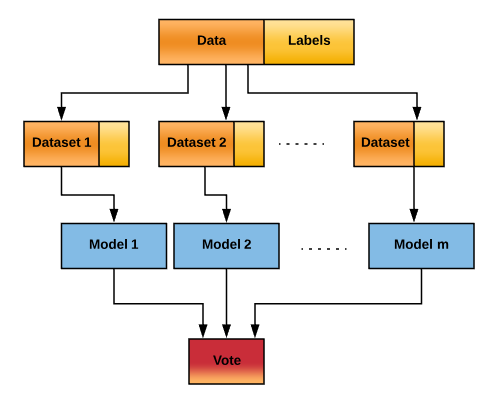

The following are the three most used ensemble learning techniques:

The numerical Python library is one of the most used libraries in mathematics and logical operations on arrays. It is loaded with many linear algebra functionalities, which are very useful in machine learning. And, of course, it is open source, and is supported by many operating systems.

To install NumPy, use the pip utility by typing the following command:

#pip install numpy

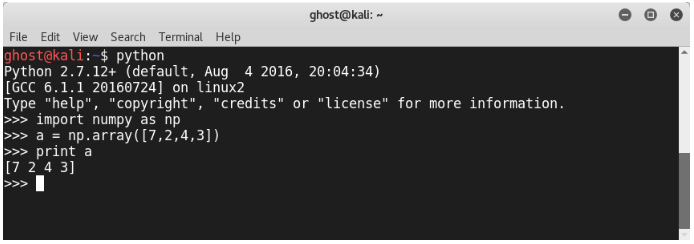

Now, you can start using it by importing it. The following script is a simple array printing example:

In addition, you can use a lot of mathematical functions, like cosine, sine, and so on.

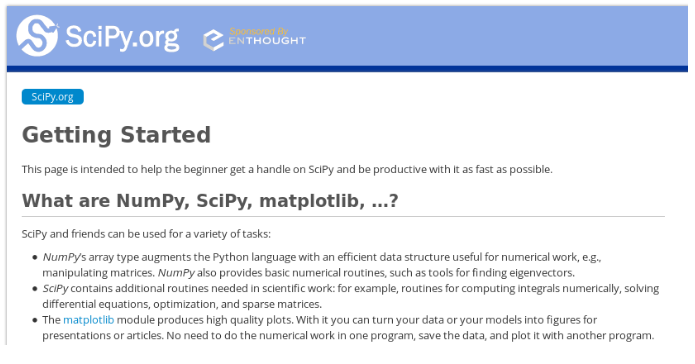

Scientific Python (SciPy) is like NumPy—an amazing Python package, loaded with a large number of scientific functions and utilities. For more details, you can visit https://www.scipy.org/getting-started.html:

If you have been into machine learning for a while, you will have heard of TensorFlow, or have even used it to build a machine learning model or to feed artificial neural networks. It is an amazing open source project, developed essentially and supported by Google:

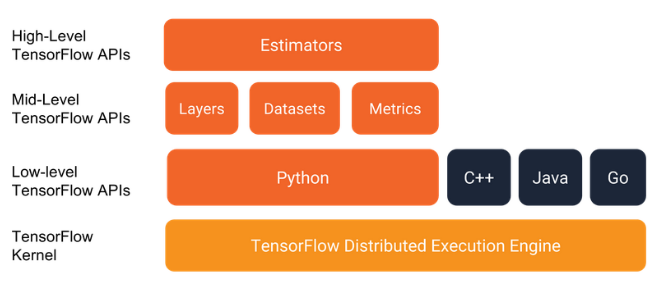

The following is the main architecture of TensorFlow, according to the official website:

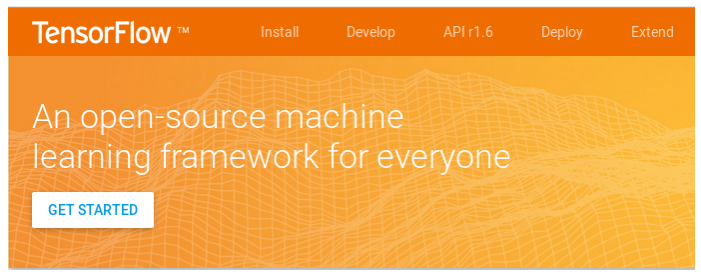

If it is your first time using TensorFlow, it is highly recommended to visit the project's official website at https://www.tensorflow.org/get_started/. Let's install it on our machine, and discover some of its functionalities. There are many possibilities for installing it; you can use native PIP, Docker, Anaconda, or Virtualenv.

Let's suppose that we are going to install it on an Ubuntu machine (it also supports the other operating systems). First, check your Python version with the python --version command:

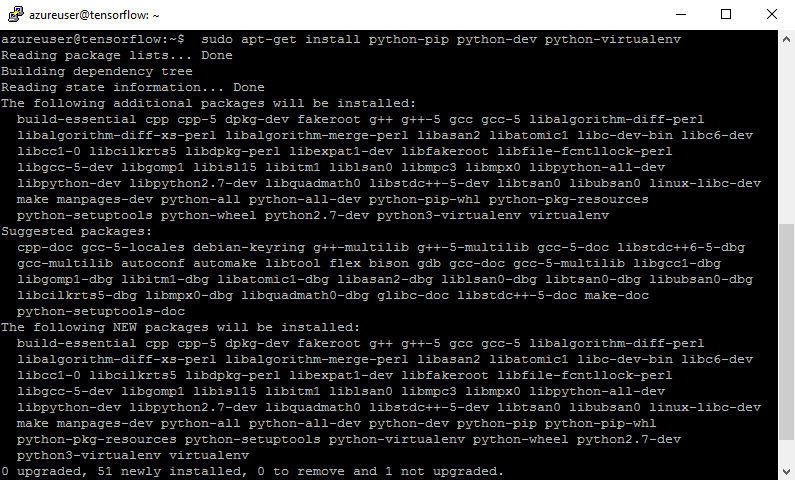

Install PIP and Virtualenv using the following command:

sudo apt-get install python-pip python-dev python-virtualenv

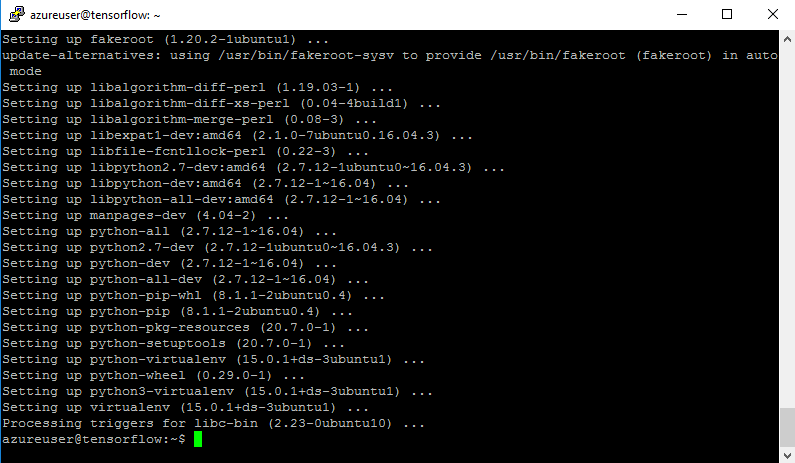

Now, the packages are installed:

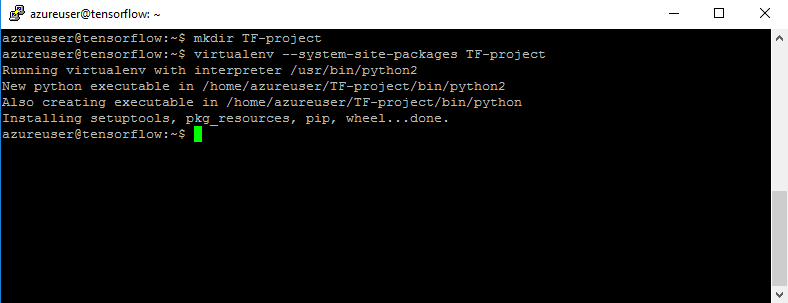

Create a new repository using the mkdir command:

#mkdir TF-project

Create a new Virtualenv by typing the following command:

 virtualenv --system-site-packages TF-project

Then, type the following command:

source  <Directory_Here>/bin/activate

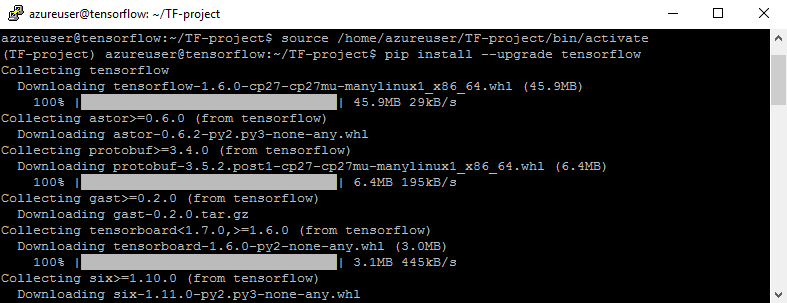

Upgrade TensorFlow by using the pip install -upgrade tensorflow command:

>>> import tensorflow as tf
>>> Message = tf.constant("Hello, world!")
>>> sess = tf.Session()
>>> print(sess.run(Message))

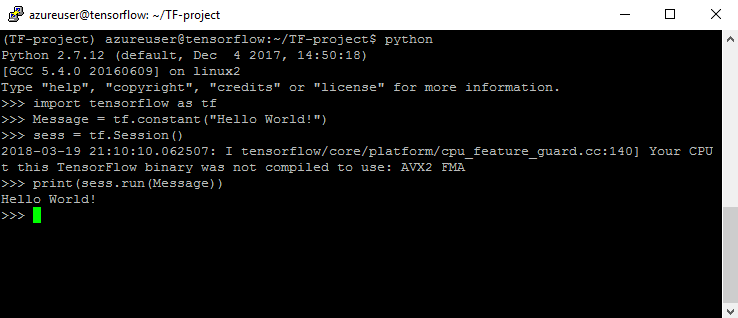

The following are the full steps to display a Hello World! message:

Keras is a widely used Python library for building deep learning models. It is so easy, because it is built on top of TensorFlow. The best way to build deep learning models is to follow the previously discussed steps:

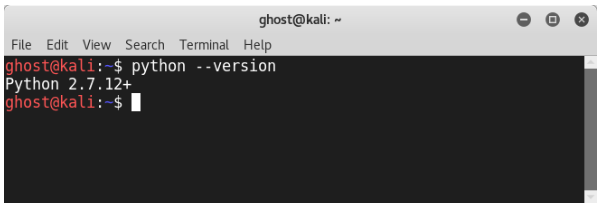

Before building the models, please ensure that SciPy and NumPy are preconfigured. To check, open the Python command-line interface and type, for example, the following command, to check the NumPy version:

 >>>print numpy.__version__

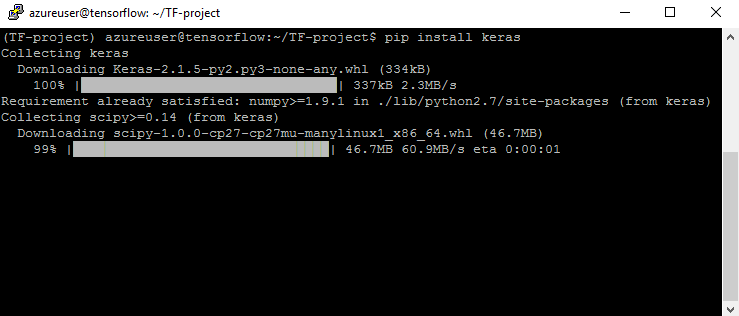

To install Keras, just use the PIP utility:

$ pip install keras

And of course to check the version, type the following command:

>>> print keras.__version__

To import from Keras, use the following:

from keras import [what_to_use]
from keras.models import Sequential
from keras.layers import Dense

Now, we need to load data:

dataset = numpy.loadtxt("DATASET_HERE", delimiter=",")
I = dataset[:,0:8]
O = dataset[:,8]
#the data is splitted into Inputs (I) and Outputs (O)

You can use any publicly available dataset. Next, we need to create the model:

model = Sequential()
# N = number of neurons
# V = number of variable
model.add(Dense(N, input_dim=V, activation='relu'))
# S = number of neurons in the 2nd layer
model.add(Dense(S, activation='relu'))
model.add(Dense(1, activation='sigmoid')) # 1 output

Now, we need to compile the model:

model.compile(loss='binary_crossentropy', optimizer='adam', metrics=['accuracy'])

And we need to fit the model:

model.fit(I, O, epochs=E, batch_size=B)

As discussed previously, evaluation is a key step in machine learning; so, to evaluate our model, we use:

scores = model.evaluate(I, O)
print("\n%s: %.2f%%" % (model.metrics_names[1], scores[1]*100))

To make a prediction, add the following line:

predictions = model.predict(Some_Input_Here)

pandas is an open source Python library, known for its high performance; it was developed by Wes McKinney. It quickly manipulates data. That is why it is widely used in many fields in academia and commercial activities. Like the previous packages, it is supported by many operating systems.

To install it on an Ubuntu machine, type the following command:

sudo apt-get install python-pandas

Basically, it manipulates three major data structures - data frames, series, and panels:

>> import pandas as pd
>>>import numpy as np
 data = np.array(['p','a','c','k',’t’])
 SR = pd.Series(data)
 print SR

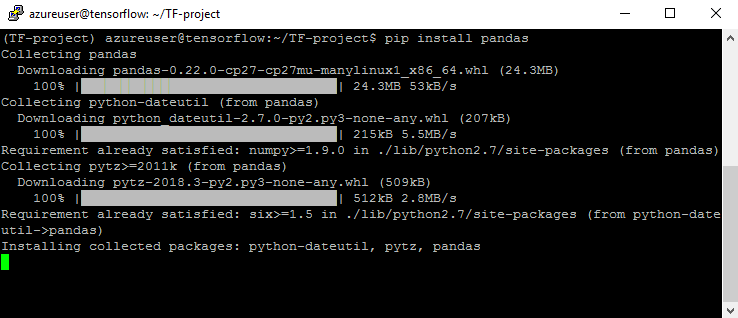

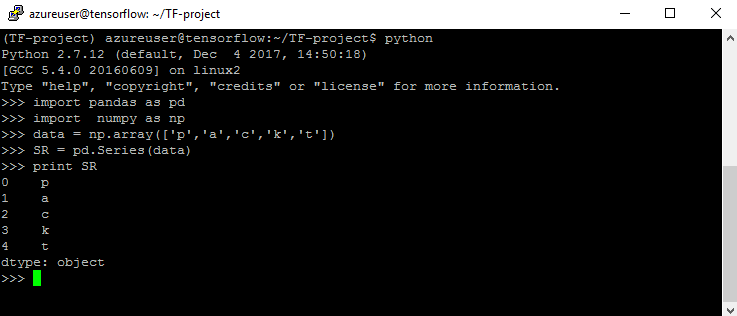

I resumed all of the previous lines in this screenshot:

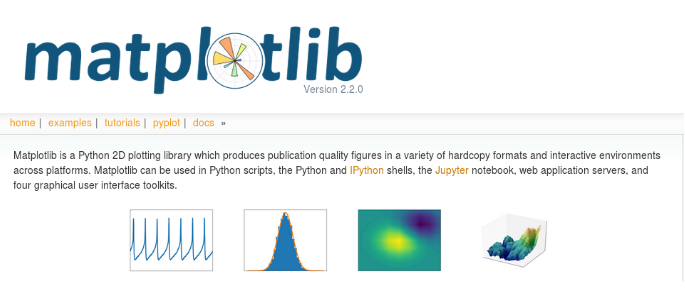

As you know, visualization plays a huge role in gaining insights from data, and is also very important in machine learning. Matplotlib is a visualization library used for plotting by data scientists. You can get a clearer understanding by visiting its official website at https://matplotlib.org:

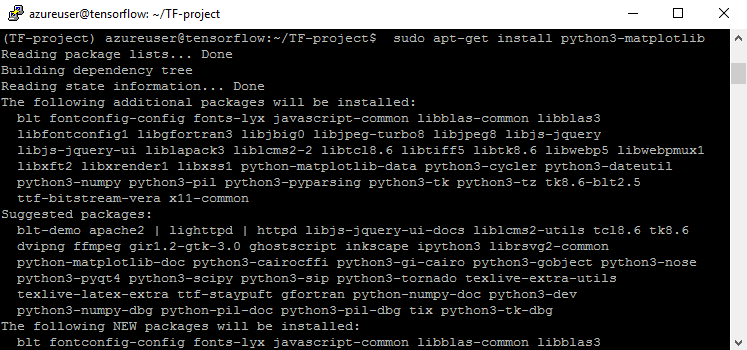

To install it on an Ubuntu machine, use the following command:

sudo apt-get install python3-matplotlib

To import the required packages, use import:

import matplotlib.pyplot as plt
import numpy as np

Use this example to prepare the data:

x = np.linspace(0, 20, 50)

To plot it, add this line:

plt.plot(x, x, label='linear')

To add a legend, use the following:

plt.legend()

Now, let's show the plot:

plt.show()

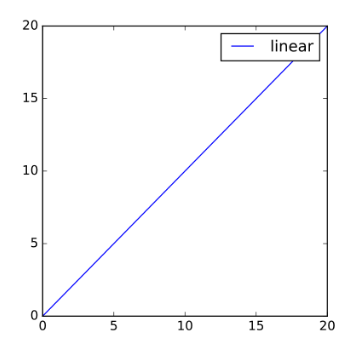

Voila! This is our plot:

I highly recommend this amazing Python library. scikit-learn is fully loaded, with various capabilities, including machine learning features. The official website of scikit-learn is http://scikit-learn.org/. To download it, use PIP, as previously discussed:

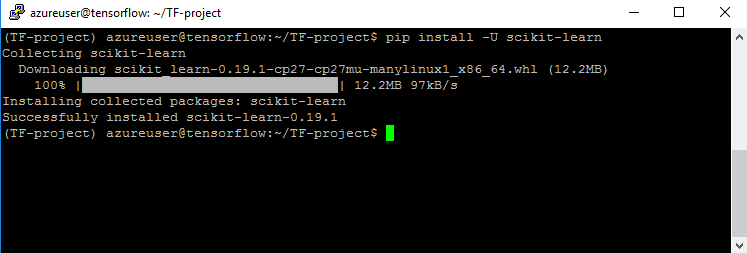

pip install -U scikit-learn

Natural language processing is one of the most used applications in machine learning projects. NLTK is a Python package that helps developers and data scientists manage and manipulate large quantities of text. NLTK can be installed by using the following command:

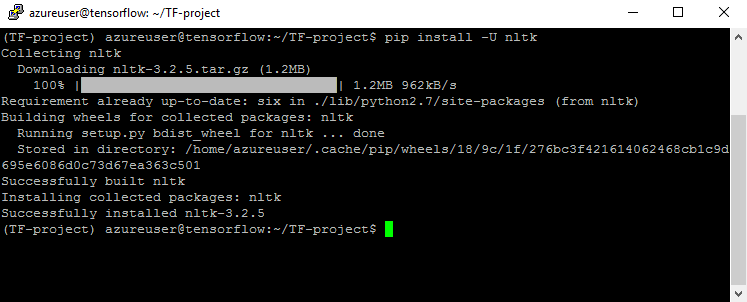

pip install -U nltk

Now, import nltk:

>>> import nltk

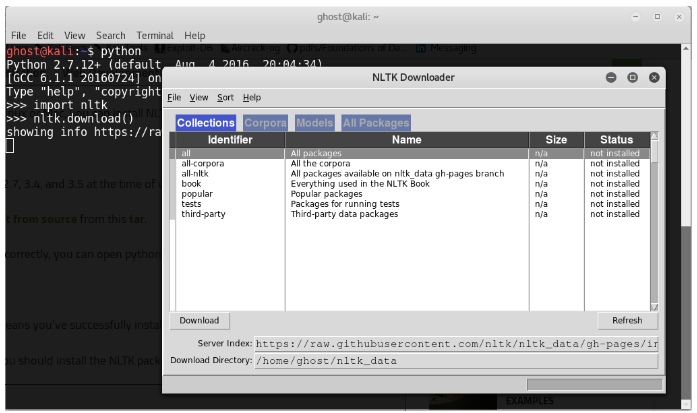

Install nltk packages with:

> nltk.download()

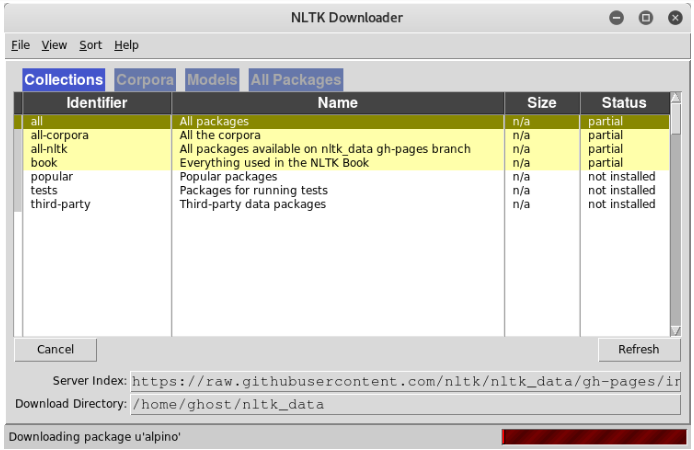

You can install all of the packages:

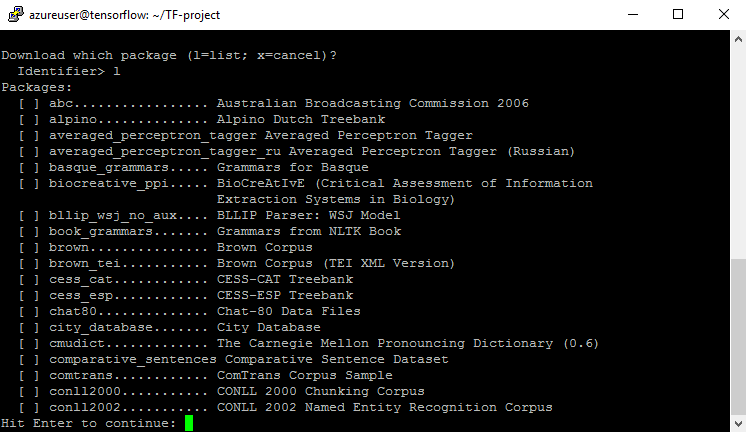

If you are using a command-line environment, you just need to follow the steps:

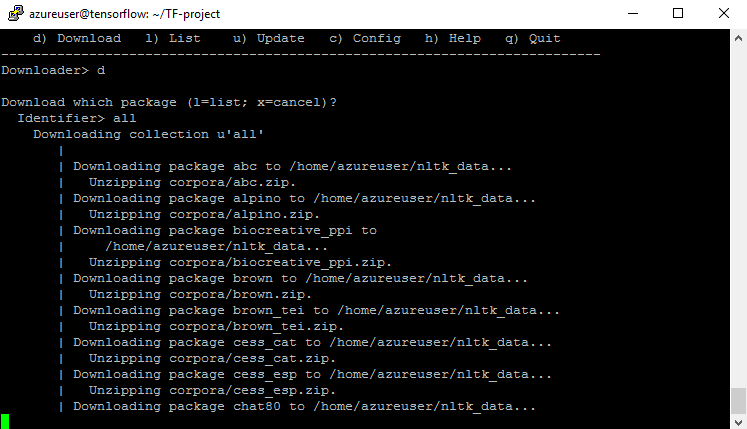

If you hit all, you will download all of the packages:

Optimization and speed are two key factors to building a machine learning model. Theano is a Python package that optimizes implementations and gives you the ability to take advantage of the GPU. To install it, use the following command:

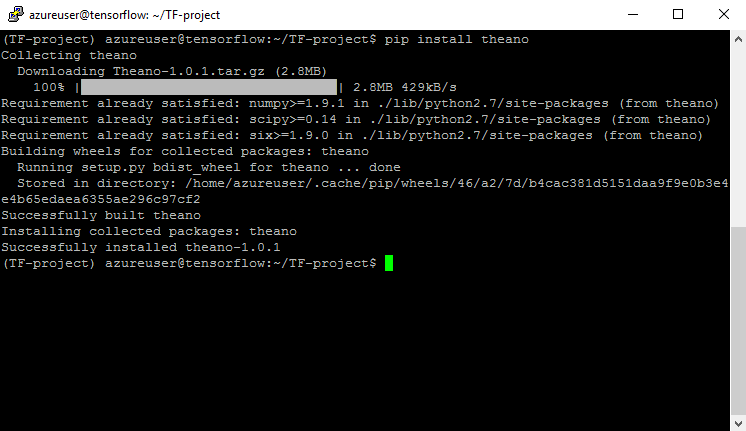

 pip install theano

To import all Theano modules, type:

>>> from theano import *

Here, we imported a sub-package called tensor:

>>> import theano.tensor as T

Let's suppose that we want to add two numbers:

>>> from theano import function
>>> a = T.dscalar('a')
>>> b = T.dscalar('b')
>>> c = a + b
>>> f = function([a, b], c)

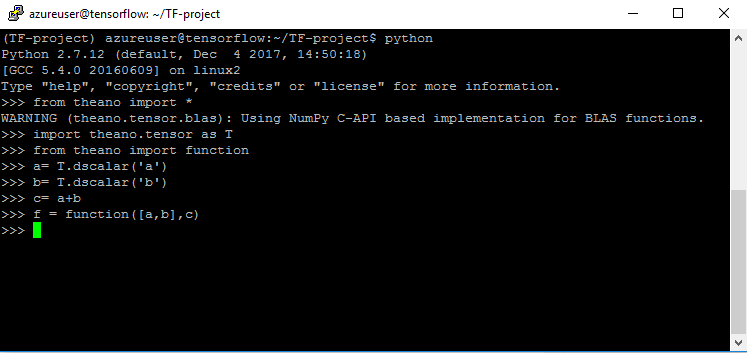

The following are the full steps:

By now, we have acquired the fundamental skills to install and use the most common Python libraries used in machine learning projects. I assume that you have already installed all of the previous packages on your machine. In the subsequent chapters, we are going to use most of these packages to build fully working information security machine learning projects.

Many great publicly available tools appeared lately that use machine learning capabilities to leverage penetration testing to another level. One of these tools is Deep Exploit. It was presented at black hat conference 2018. It is a fully automated penetration test tool linked with metasploit. This great tool uses uses reinforcement learning (self-learning).

It is able to perform the following tasks:

To download Deep Exploit visit its official GitHub repository: https://github.com/13o-bbr-bbq/machine_learning_security/tree/master/DeepExploit.

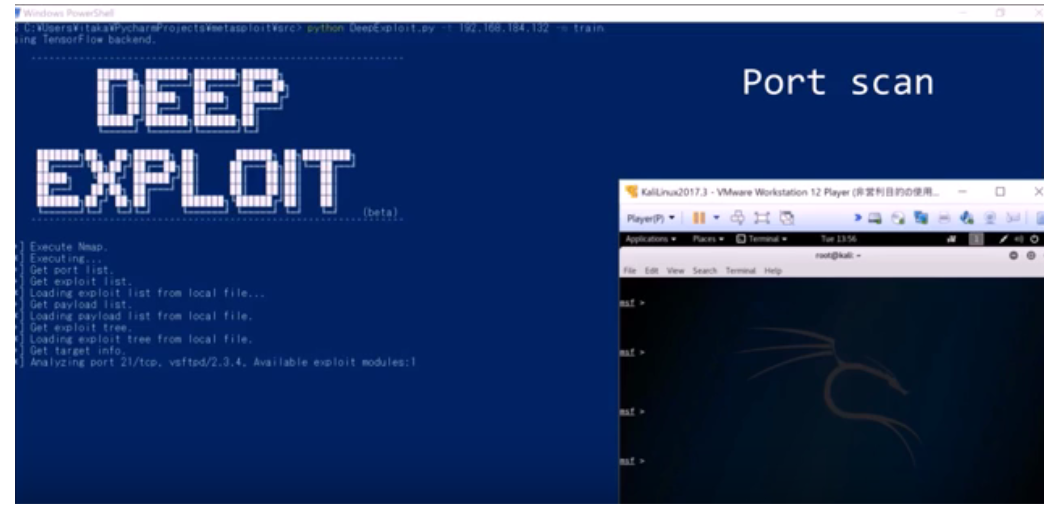

It is consists of a machine learning model (A3C) and metasploit. This is a high level overview of Deep Exploit architecture:

The required environment to make Deep Exploit works properly is the following:
