PWM controller driver

As you need struct gpio_chip when writing GPIO-controller drivers and struct irq_chip when writing IRQ-controller drivers, a PWM controller is represented in the kernel as an instance of the struct pwm_chip structure:

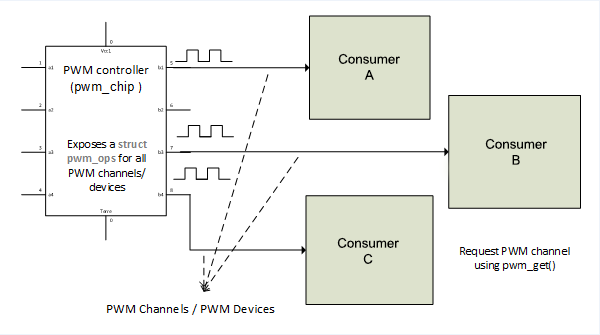

PWM controller and devices

struct pwm_chip {
   struct device *dev;
   const struct pwm_ops *ops;
   int base;
   unsigned int npwm;

   struct pwm_device *pwms;
   struct pwm_device * (*of_xlate)(struct pwm_chip *pc,
                    const struct of_phandle_args *args);
   unsigned int of_pwm_n_cells;
   bool can_sleep;
};

The following lists the meaning of each element in the structure:

• dev: This represents the device associated with the chip.
• Ops: This is a data structure providing callback functions this chip exposes to consumer drivers.
• Base: This is the number of the first PWM controlled by this chip. If chip->base < 0, then the kernel will dynamically assign a base.
• can_sleep: This should be set to true by the chip driver if the .config...
