Sensor devices for smart parking

To build a smart parking system, it's necessary to have some sensors that can be applied to such a system. Let's see them in detail.

Presence sensor

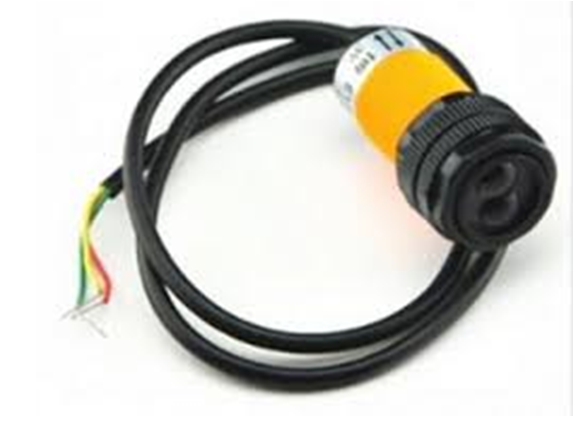

To detect when a car is in a parking lot, there are some sensors available; in this case, we will use a presence sensor like this:

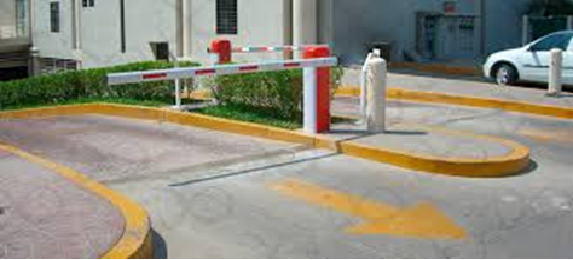

In some parking lots, there is a gate that goes up when the driver arrives in front of it and they press the button and receive their ticket; in others, they have an identity card. Here is a common parking lot:

This is a prototype of the entrance to the parking lot:

Now we will make a sketch that we can use with Arduino; it detects when the car gets close to the sensor. We use the digitalread() instruction to detect a digital signal; this sensor activates with a signal in low, as shown in the following code:

    #include <Wire.h>
    #include <LiquidCrystal_I2C.h>

    LiquidCrystal_I2C lcd(0x3F,16,2); // set the LCD address to 0x20 for a 16 chars and 2 line display

    /...
