Chapter 8: Transfer Learning and Pre-trained Models

Activity 15: Use the VGG16 Network to Train a Deep Learning Network to Identify Images

Solution:

1. Import the libraries:

   import numpy as np

   from keras.applications.vgg16 import VGG16

   from keras.preprocessing import image

   from keras.applications.vgg16 import preprocess_input

2. Initiate the model. (Note that at this point, you can also view the architecture of the network, as follows.):

   classifier = VGG16()

   print(classifier.summary())

   classifier.summary () shows us the architecture of the network. The following points should be noted: It has a four-dimensional input shape (None, 224,224,3) and it has three convolutional layers.

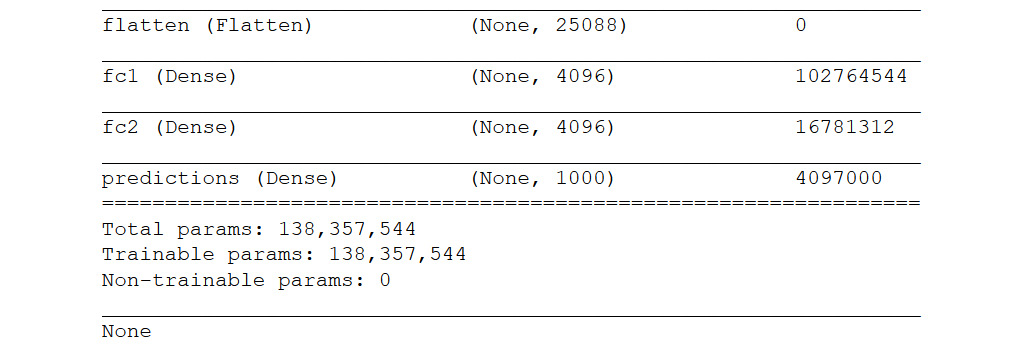

   The last four layers of the output are:



   Figure 8.29: The architecture of the network

3. Load the image. ‘../Data/Prediction/test_image_1.jpg’ is the path of the image on our system. It will be different on your system:

   new_image= image.load_img(‘../Data/Prediction/test_image_1.jpg’, target_size...
