In this recipe, we're going to diagnose and solve a problem in a simple Express application.
We're going to debug a small web server, so let's create that real quick.
On the command line, we execute the following commands:
$ mkdir app$ cd app$ npm init -y$ npm install --save express$ touch index.js future.js past.js
Our index.js
file should contain the following:
const express = require('express')
const app = express()
const past = require('./past')
const future = require('./future')
app.get('/:age', (req, res) => {
res.send(past(req.params.age, 10) + future(req.params.future, 10))
})
app.listen(3000)
Our past.js
file should look like this:
module.exports = (age, gap) => {
return `${gap} years ago you were ${Number(age) - gap}<br>`
}
And our future.js
file should be as follows:
module.exports = (age, gap) => {
return `In ${gap} years you will be ${Number(age) + gap}<br>`
}
Note
Web frameworks
We're only using Express here as an example. To learn more about Express and other frameworks, see Chapter 7, Working With Web Frameworks.
When we run our server (which we created in the Getting ready section), and navigate our browser to http://localhost:3000/31
, the output is as follows:
10 years ago you were 21
In 10 years you will be NaN
It looks like we have a Not a Number
problem.
Let's start our server in inspection mode:
$ node --inspect index.js
This will output a message that the debugger is listening.
We can connect to the debugger using the Chrome browser. Let's open Chrome and navigate to chrome://inspect.
Ensuring that we're in the Devices
tab, we should be able to see our Node process underneath the Remote Target
section, as in the following screenshot:
We should then see something like the following:
Note
The module wrapper
Notice that the Devtools Code section shows an additional outer function wrapping the code we placed into index.js
. This outer function is added at runtime to each code file loaded into the process (either by directly starting the file with node
or by using require
to load it). This outer function is the module wrapper, it's the mechanism Node uses to supply local references like module and __filename
that are unique to our module without polluting global scope.
Now let's set a breakpoint inside route handler, on line 7.
If we click the number 7 in the LOC column to the left of the code, an arrow shape will appear over and around the number (which will turn white). Over in the right-hand column, in the Breakpoints pane we should also see a checkbox with index.js:7
next to it, while beneath that is the code from the line we've set a breakpoint on.
In short, the Devtools GUI should now look something like the following:
Now let's open a new tab and navigate to http://localhost:3000/31
:
This will cause the to trigger, and Devtools will grab focus.
The next thing we see should look like the following:
We can see line 7 is now highlighted, and there's a sort of tooltip showing us the values of the req
and res
objects on the line above.
Over in the right column, the Call Stack
panel is full of call frames (the functions in the stack), and there's now a blue play button in the control icons at the top of the right column. If we were to scroll the right column, we'd also see the Scope
pane is populated with references.
The debugger is waiting for us to allow execution to proceed, and we can chose whether to step over, in, or out of the next instruction.
Let's try stepping in. This is the down arrow pointing to a dot, the third icon from the left in the controls section:
When we press this, we step into the past function, which is in the past.js
file, so Devtools will open a new tab in the center code panel and highlight the line that is about to execute (in our case, line 2):
So let's step out of the past
function by pressing the arrow pointing up and away from a dot, next to the step-in icon:
The second line of the output seems to have the issue, which is our future
function.
Now that we've stepped out, we can see that the call to future
is highlighted in a darker shade of blue:
Now let's press the step-in icon again, which will take us into the future
function in the future.js
file:
Okay, this is the function generates that particular sentence with the NaN
in it. A NaN
can be generated for all sort of reasons, such as dividing zero by itself, subtracting Infinity
from Infinity
, coerce a string to a number when the string does not hold a valid number, to name a few. At any rate, it's probably something to do with the values in our future
function.
Let's hover over the gap
variable. We should see the following:
Seems fine. Now let's hover over the age
variable:
Wait... why does that say undefined
? We vicariously passed 31
by navigating to http://localhost:3000/31
.
To be sure our eyes aren't deceiving us, we can double-check by collapsing the Call Stack section (by clicking the small downwards arrow next to the C
of Call Stack
). This will make room for us to easily see the Scope section, which reports that the age
variable is indeed undefined
, as in the following screenshot:
Well, Number(undefined)
is NaN
, and NaN + 10
is also NaN
.
Why is age
set to undefined
?
Let's open up the Call Stack
bar again and click the second row from the top (which says app.get
).
We should be back in the index.js
file again (but still frozen on line 2 of future.js
), like so:
Now let's hover over the value we're passing in to future
:
That's undefined
too. Why is it undefined
?
Oh. That should be req.params.age
, not req.params.future
. Oops.
To be absolutely sure, let's fix it while the server is running. If we hit blue play button once we see something like this:
Now let's click line 7
again to remove the breakpoint. We should be seeing:
Now if we click immediately after the e
in req.params.future
we should get a blink cursor. We backspace out the word future
and type the word age
, making our code look like this:
Finally, we can live save those changes in our running server by pressing Cmd + S on macOS, or Ctrl + S on Windows and Linux.
Finally, let's check our route again:
OK, we've definitely found the problem, and verified a solution.
We don't really need to know how debugging Node with devtools is made possible in order to avail ourselves of the tool, however, for the curious here's a high-level overview.
Debugging ability is ultimately provided by V8, the JavaScript engine used by Node. When we run node
with the --inspect
flag, the V8 inspector opens a port that WebSocket connections. Once a connection is established, commands in the form of JSON packets are sent back and forth between the and a client.
The chrome-devtools://
URI is a special protocol recognized by the Chrome browser that loads the Devtools UI (which is written in HTML, CSS, and JavaScript, so can be loaded directly into a normal browser tab). The Devtools UI is loaded in a special mode (remote mode), where a WebSocket endpoint is supplied via the URL.
The WebSocket connection allows for bi-directional communication between the inspector and the client. The tiny Inspector WebSocket server is written entirely in C and runs on a separate thread so that when the process is paused, the inspector can continue to receive and send commands.
In order to achieve the level of control we're afforded in debug mode (ability to pause, step, inspect state, view callstack, live edit) V8 operations are instrumented throughout with Inspector C++ functions that can control the flow, and change state in place.
For instance, if we've set a breakpoint, once that line is encountered, a condition will match in the C++ level that triggers a function that pauses the event loop (the JavaScript thread). The Inspector then sends a message to the client over the WebSocket connection telling it that the process is paused on a particular line and the client updates its state. Likewise, if the user chooses to step into a function, this command is sent to the Inspector, which can briefly unpause and repause execution in the appropriate place, then sends a message back with the new position and state.
Let's find out how to debug older versions of Node, make a process start with a paused runtime and learn to use the built-in command-line debugging interface.
Using node-inspector with older Node versions
The --inspect
flag and protocol were introduced in Node 6.3.0, primarily because the V8 engine had changed the debugging protocol. In Node 6.2.0 and down, there's a legacy debugging protocol enabled with the --debug
flag, but this isn't compatible the native Chrome Devtools UI.
Instead, we can use the node-inspector
tool, as a client for the legacy protocol.
The node-inspector
tool essentially wraps an older version of Devtools that interfaces with the legacy debug API, and then hosts it locally.
Let's install node-inspector
:
$ npm i -g node-inspector
This will add a global executable called node-debug
, which we can use as shorthand to start our process in debug mode.
If we could run our process like so:
$ node-debug index.js
We should see output that's something like the following:
Node Inspector v0.12.10Visit http://127.0.0.1:8080/?port=5858 to start debugging.Debugging `index.js`Debugger listening on [::]:5858
When we load the URL http://127.0.0.1:8080/?port=5858
in our browser we'll again see the familiar Devtools interface.
By default, the node-debug
command start our process in a paused state. After pressing run (the blue play button), we should now be able to follow the main recipe in it's entirely using a legacy version of Node.

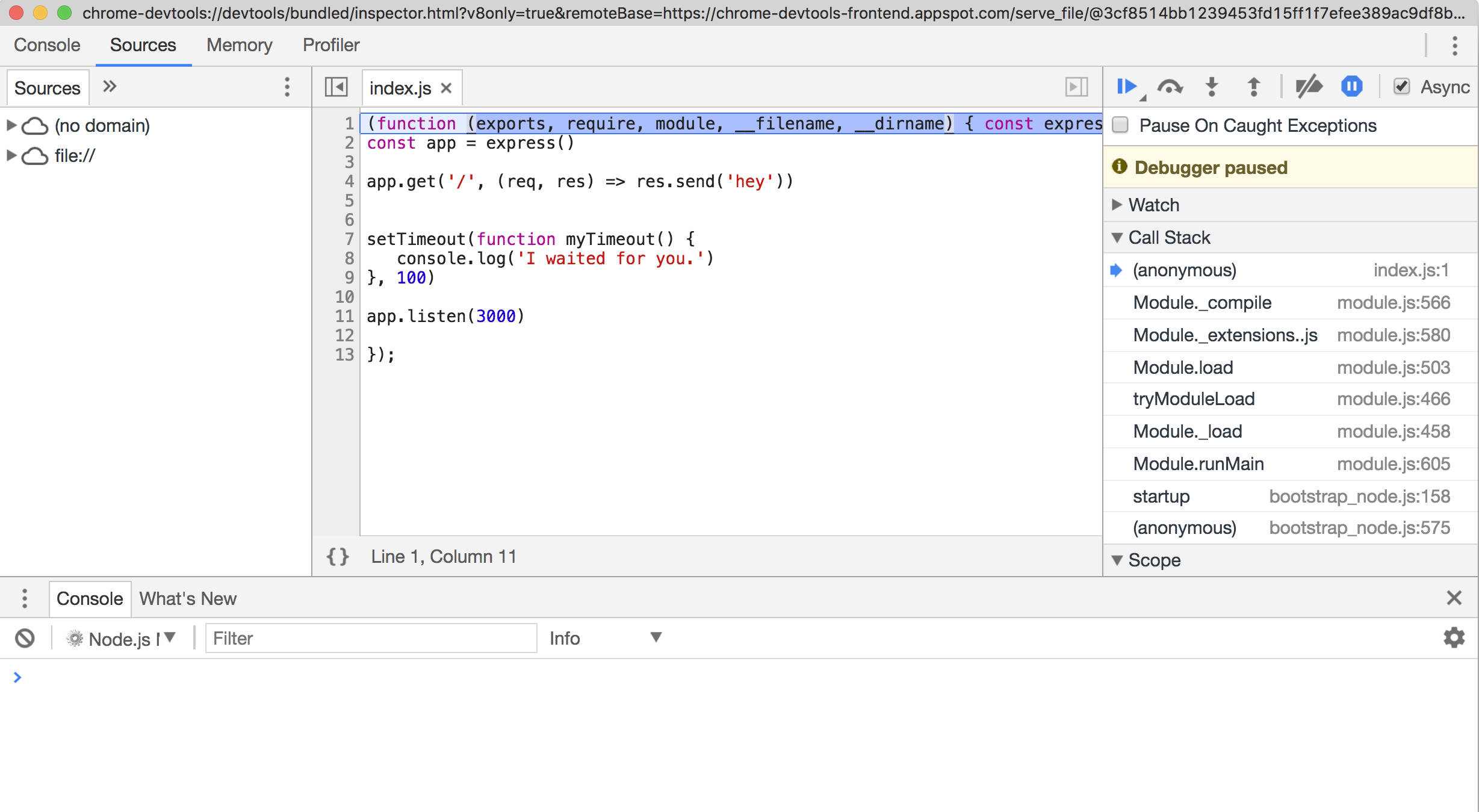

Immediately pausing a process on start
In many cases, we want to debug a process from initialization, or we want to set up breakpoints before anything can happen.
From Node 8 onwards, we use the following to start Node in an immediately paused state:
$ node --inspect-brk index.js
In Node 6 (at time of writing, 6.10.0), --inspect
is supported but --inspect-brk
isn't. Instead, we can use the legacy --debug-brk
flag in conjunction with --inspect
like so:
$ node --debug-brk --inspect index.js
In Node v4 and lower, we'd simply use --debug-brk
instead of --debug
(in conjunction with another client, see Using Node Inspector with older Node versions)
There may be rare occasions we don't have easy access to a GUI. In these scenarios, command-line abilities become paramount.
Let's take a look at Nodes, built in command-line debugging interface.
Let's run our app from the main recipe like so:
$ node debug index.js
When we enter debug mode, we see the first three lines of our entry point (index.js
).
Upon entering debug mode, the process is paused on the first line of the entry point. By default, when a breakpoint occurs the debugger shows two lines before and after the current line of code, since this is the first line we only see two lines after.
The debug mode provides several commands in the form of functions, or sometimes as magic getter/setters (we can view these commands by typing help and hitting Enter).
Let's get a little context using the list
function:
debug> list(10)
This provides 10 lines after our current line (again it would also include 10 lines before, but we're on the first line so there's no prior lines to show).
We're interested in the seventh line, because this is the code that's executed when the server a request.
We can use the sb
function (which stands for Set Breakpoint) to set a break point on line 7, like so:
debug> sb(7)
Now if we use list(10)
again, we should see an asterisk (*
) adjacent to line 7:
debug> list(10)
Since our app began in paused mode, we need to tell the process to begin running as normal so we can send a request to it.
We use the c
command to tell the process to continue, like so:
debug> c

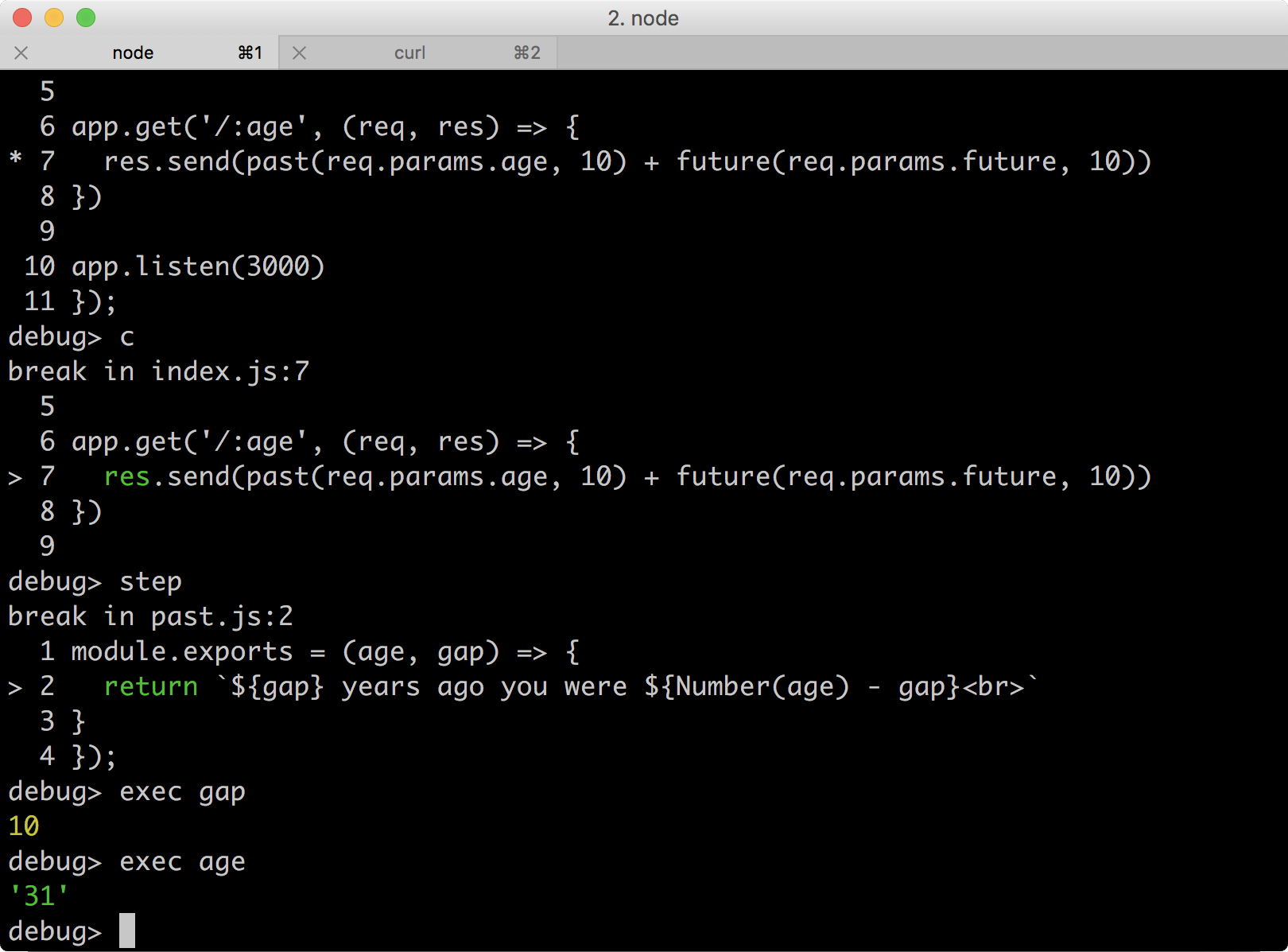

Now let's make a request to our server, we could use a browser to do this, or if we have curl
on our system, in another terminal we could run the following:
$ curl http://localhost:3000/31
This will cause the process to hit our breakpoint and the debugger console should print out break in index.js:7
along with the line our code is currently paused on, with two lines of context before and after. We can see a right caret (>
) indicating the current line:
Now let's step in to the first function. To step in, we use the step
command:
debug> step
This enters our past.js
file, with the current break on line 2.
We can print out references in the current debug scope using the exec
command, let's print out the values of the gap
and age
arguments:
debug> exec gapdebug> exec age
Everything seems to be in order here.
Now let's step back out of the past
function. We use the out
command to do this, like so:
debug> out
We should now see that the future
function is a different color, indicating that this is the next function to be called. Let's step into the future
function:
debug> step
Now we're in our future.js
file, again we can print out the gap
and age
arguments using exec
:
debug> exec gapdebug> exec age
Aha, we can see that age
is undefined
. Let's step back up into the router
function using the out
command:
debug> out
Let's inspect req.params.future
and req.params
:
debug> req.params.futuredebug> req.params
It's now (again) obvious where the mistake lies. There is no req.params.future
; that input should be req.params.age
.
