Design and relations of SDDC components
These are best practices and proven practices how a design for all components in the SDDC might look like. It will highlight a possible cluster layout including a detailed description want needs to be put where and why a certain configuration needs to be made like that.
Typically, every design should have an overview to quickly understand what the solution is going to look like and how the major components are related. In the SDDC one could start drawing the used vSphere Clusters including their functions.
Logical overview of the SDDC clusters

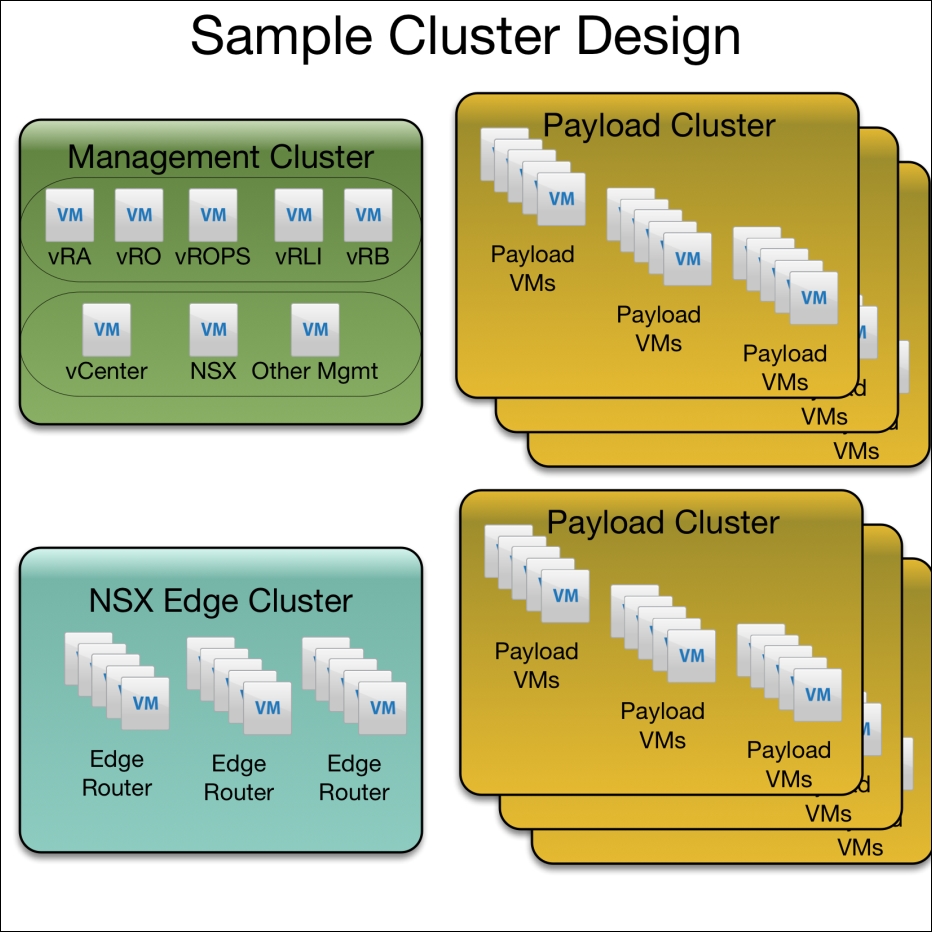

This following image describes an SDDC that is going to be run on the three cluster approach:

The three clusters are as follows:
- The management cluster for all SDDC managing services
- The edge for NSX cluster where all the north-south network traffic is flowing through
- The actual payload cluster where the production VMs get deployed onto
Tip
Newer best practices from VMware, as described in the VMware validated designs...
