Building a CNN model from scratch

For this example, let's build our own architecture from scratch. Our network architecture will contain a combination of different layers, namely:

• Conv2d
• MaxPool2d
• Rectified linear unit (ReLU)
• View
• Linear layer

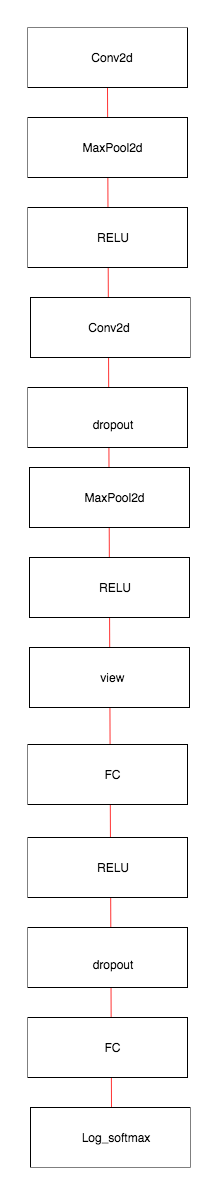

Let's look at a pictorial representation of the architecture we are going to implement:

Let's implement this architecture in PyTorch and then walk through what each individual layer does:

class Net(nn.Module):
    def __init__(self):
        super().__init__()
        self.conv1 = nn.Conv2d(1, 10, kernel_size=5)
        self.conv2 = nn.Conv2d(10, 20, kernel_size=5)
        self.conv2_drop = nn.Dropout2d()
        self.fc1 = nn.Linear(320, 50)
        self.fc2 = nn.Linear(50, 10)

    def forward(self, x):
        x = F.relu(F.max_pool2d(self.conv1(x), 2))
        x = F.relu(F.max_pool2d(self.conv2_drop(self.conv2(x)), 2))
        x = x.view(-1, 320)
        x = F.relu(self.fc1(x))
        x = F.dropout(x, training=self.training)
        x = self.fc2(x)
  ...
