Creating a vSphere Distributed port group

A Distributed Port Group (dvPortGroup) can only be created from the vCenter Server. Every dvPortGroup created has a default of 8 available ports. Port allocation is elastic, which means that the port count will automatically increase or decrease as needed.

How to do it...

The following procedure will help you create a dvPortGroup:

Bring up the Networking inventory using the vSphere Web Client by using the key combination Ctrl + Alt + 5.

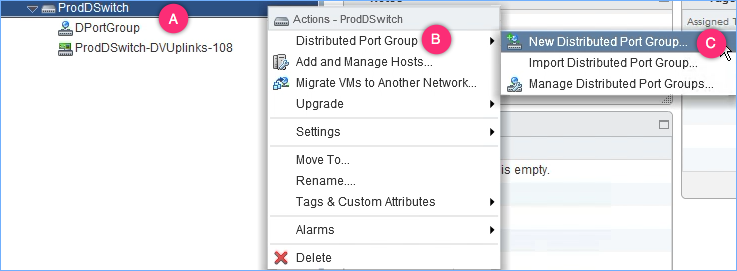

Right-click on the dvSwitch you intend to create the port group on and navigate to Distributed Port Group | New Distributed Port Group...:

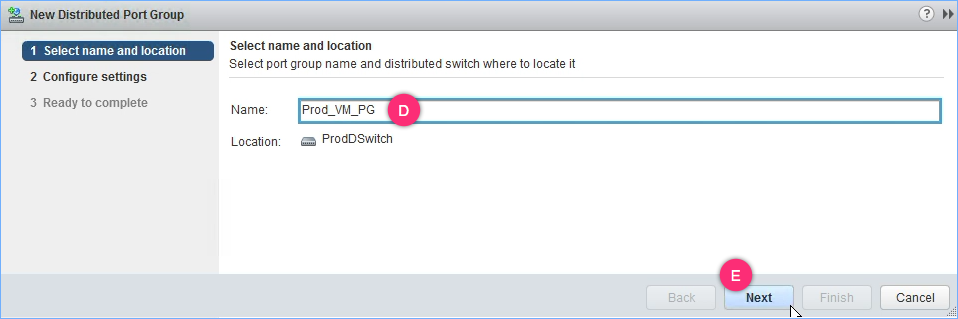

On the New Distributed Port Group screen, supply a name for the port group and click Next to continue:

On the Configure settings screen, set the Port binding, Port allocation, Number of ports, Network resource pool, and VLAN type. You can also choose to override the dvSwitch settings by selecting the option, Customize default policies configuration.
On the Security screen, configure...
