Building 3D maps and mazes

We've seen that the Pi3D library can be used to create lots of interesting objects and environments. Using some of the more complex classes (or by constructing our own), whole custom spaces can be designed for the user to explore.

In the following example, we use a special module called Building, which has been designed to allow you to construct a whole building using a single image file to provide the layout:

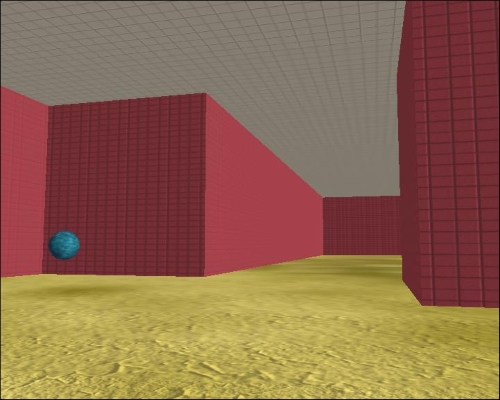

Explore the maze and find the sphere that marks the exit

Getting ready

You will need to ensure that you have the following files in the pi3d/textures directory:

• squareblocksred.png

• floor.png

• inside_map0.png, inside_map1.png, inside_map2.png

These files are available as part of the book's resources placed in Chapter05\resource\source_files\textures.

How to do it…

Let's run the following 3dMaze.py script by performing the following steps:

1. First, we set up the keyboard, mouse, display, and settings for the model using the following code:

   #!/usr/bin/python3
   """Small...
