Block diagram of ROS-Industrial packages

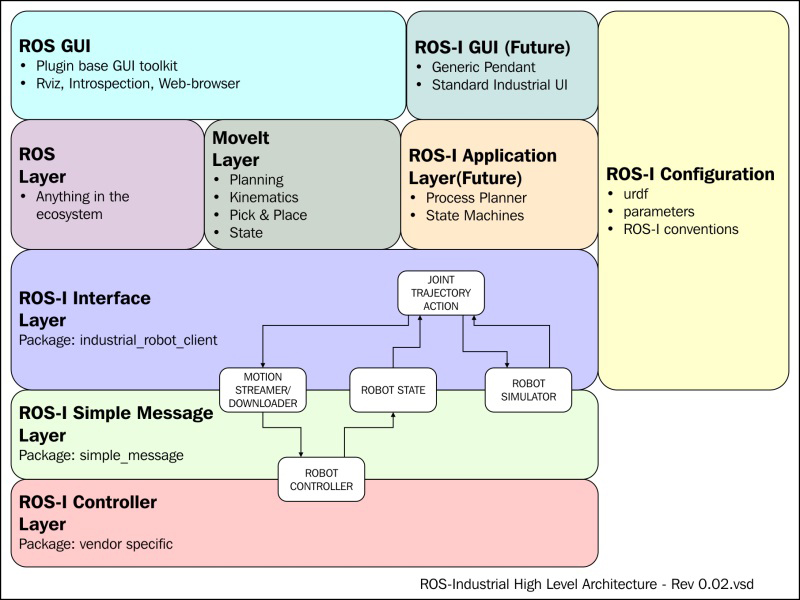

The following diagram a simple block diagram representation of ROS-I packages, which are organized on top of ROS. We can see the ROS-I layer on top of the ROS layers. We can see a brief description of each of the layers for better understanding. The following diagram is taken from ROS-I wiki page (http://wiki.ros.org/Industrial).
Figure 2: The block diagram of ROS-Industrial
The ROS GUI: This layer includes the ROS plugin-based GUI tools layer, which consists of tools such as RViz,
rqt_gui, and so onThe ROS-I GUI: These GUIs are standard industrial UI for working with industrial robots which may be implemented in the future
The ROS Layer: This is the base layer in which all communications are taking place
The MoveIt! Layer: The MoveIt! layer provides a direct solution to industrial manipulators in planning, kinematics, and pick and place
The ROS-I Application Layer: This layer consists of an industrial process planner, which is used to plan what is...
